LAP 1 Routing

Problem¶

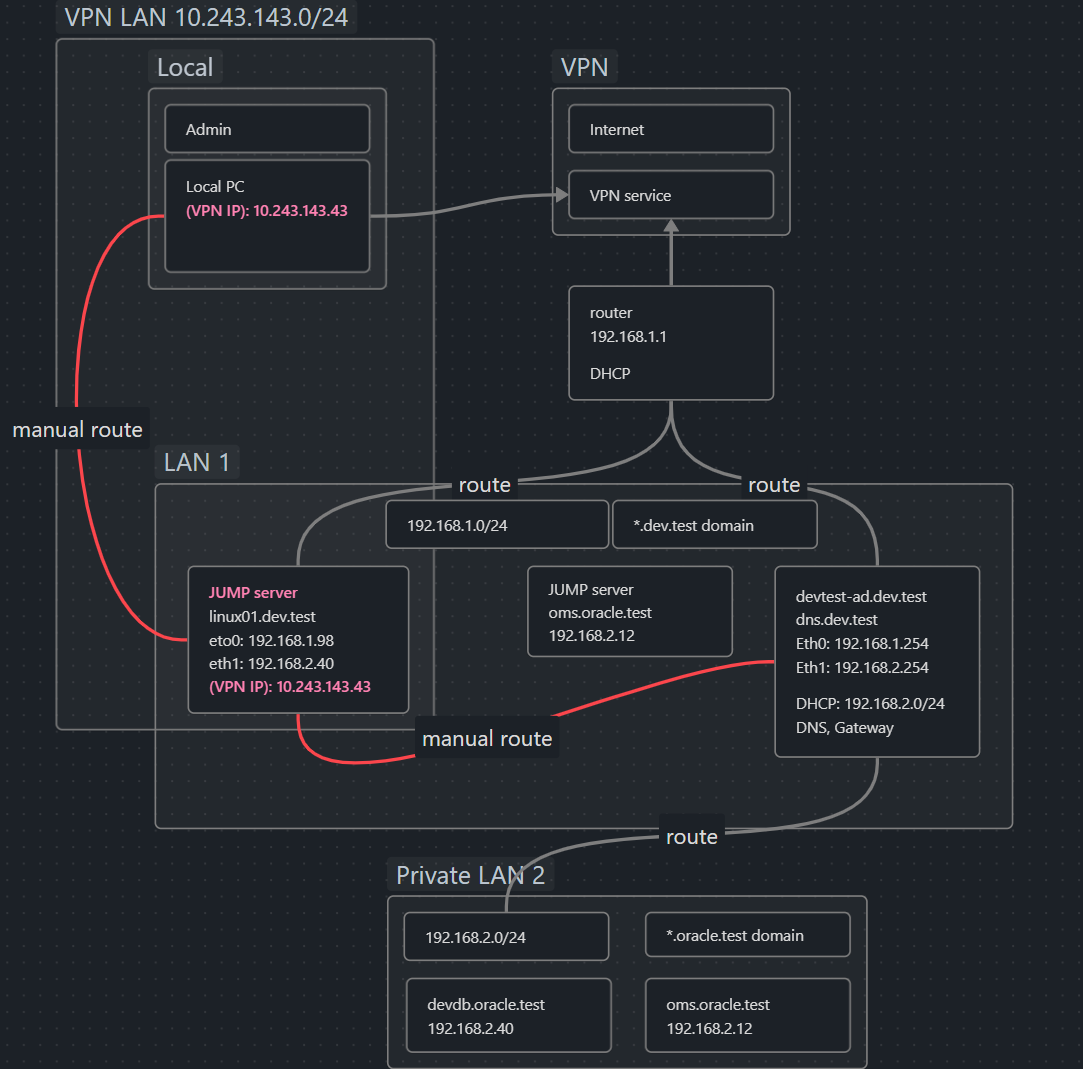

Consider we having this network NETWORK LAP 1 - VPN route, route the Admin to access the Private LAN (the Router can’t not access and change route table)

The 192.168.1.254 gateway have 2 network card to make route traffic between 192.168.1.0/24 and 192.168.2.0/24

Jump server also have two network card too. But all other Private Lan 2 client only have 192.168.1.254 as default gateway

Solve¶

To get to the Answer

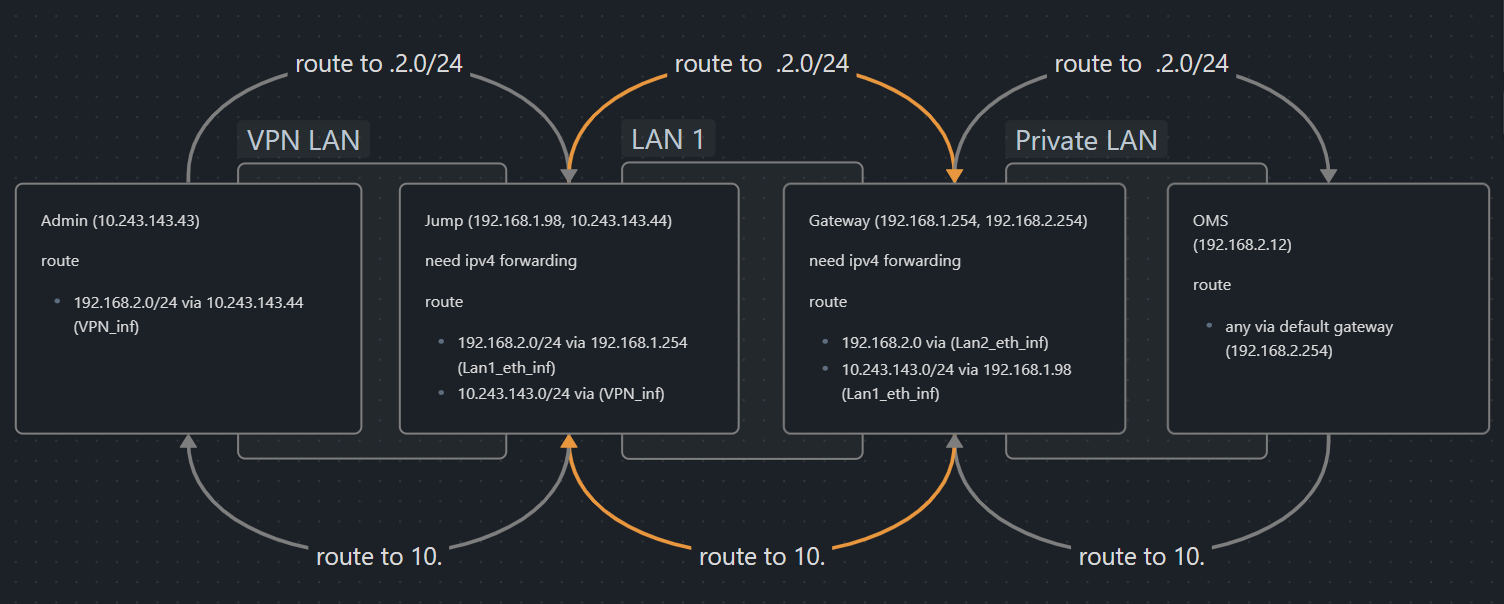

We mush make sure we have the packet can be route forward and backward. In this problem, we have 2 new hop gateway (with 3 manual route) that need manual config.

Pre require¶

The network card in Jump server make the routing too complex thus being remove and use 192.168.1.254 as gateway to access the Private Lan 2 client instead.

sudo nwtui

Then process to deactivate and disable Lan 2 network interface on the Jump server

Hop 1:¶

Route Admin PC to Jump server¶

This is needed so that Admin PC can understand and find 192.168.2.0/24 network

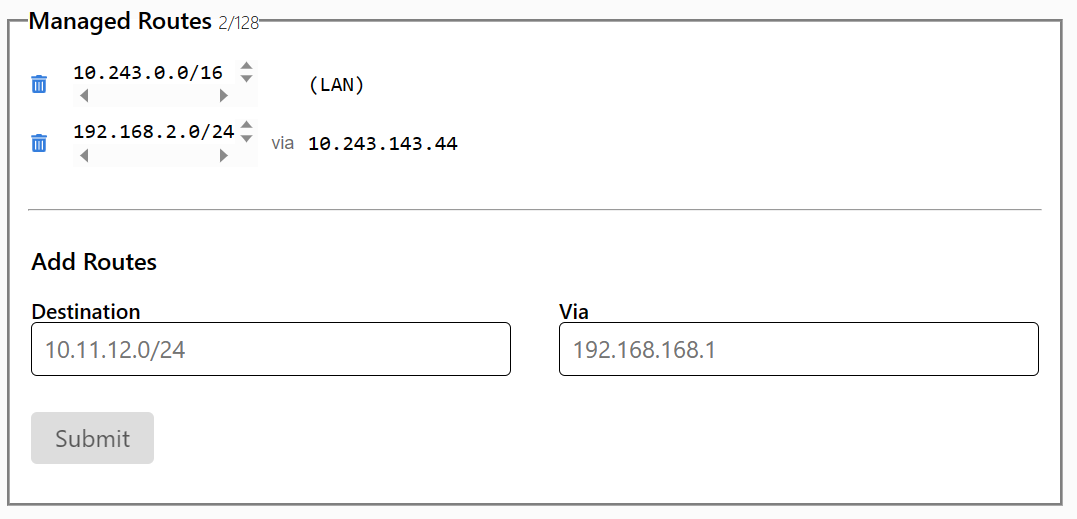

This require we add to our gateway routing table (which is on VPN server)

route 192.168.2.0/24 via 10.243.143.44

or

sudo route add -net 192.168.2.0/24 gw 10.243.143.44

Result route table on Admin PC after update should look like this

→ route
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
default         net.xxx         0.0.0.0         UG    600    0        0 tun0
10.243.0.0      0.0.0.0         255.255.0.0     U     0      0        0 <VPN_inf>
link-local      0.0.0.0         255.255.0.0     U     1000   0        0 br-1da3c1d75167
192.168.2.0     10.243.143.44   255.255.255.0   UG    0      0        0 <VPN_inf>

Adding forwarding request on Jump server¶

To route the packet back, Jump server have to have IPv4 forwarding capacity to allow traffic to flow through as local VPN client (.44) is also acting as a router for other devices (.43)

sudo sysctl -w net.ipv4.ip_forward=1

Or by config file¶

sudo nano /etc/sysctl.conf

Add or uncomment the following line:

net.ipv4.ip_forward=1

And then apply

sudo sysctl -p

Hop 2: Route packet between Jump server and Gateway¶

Gateway route traffic over VPN network¶

On the gateway, we need to enable IP forwarding so that it can forward traffic from the 192.168.2.0/24 subnet to the VPN client:

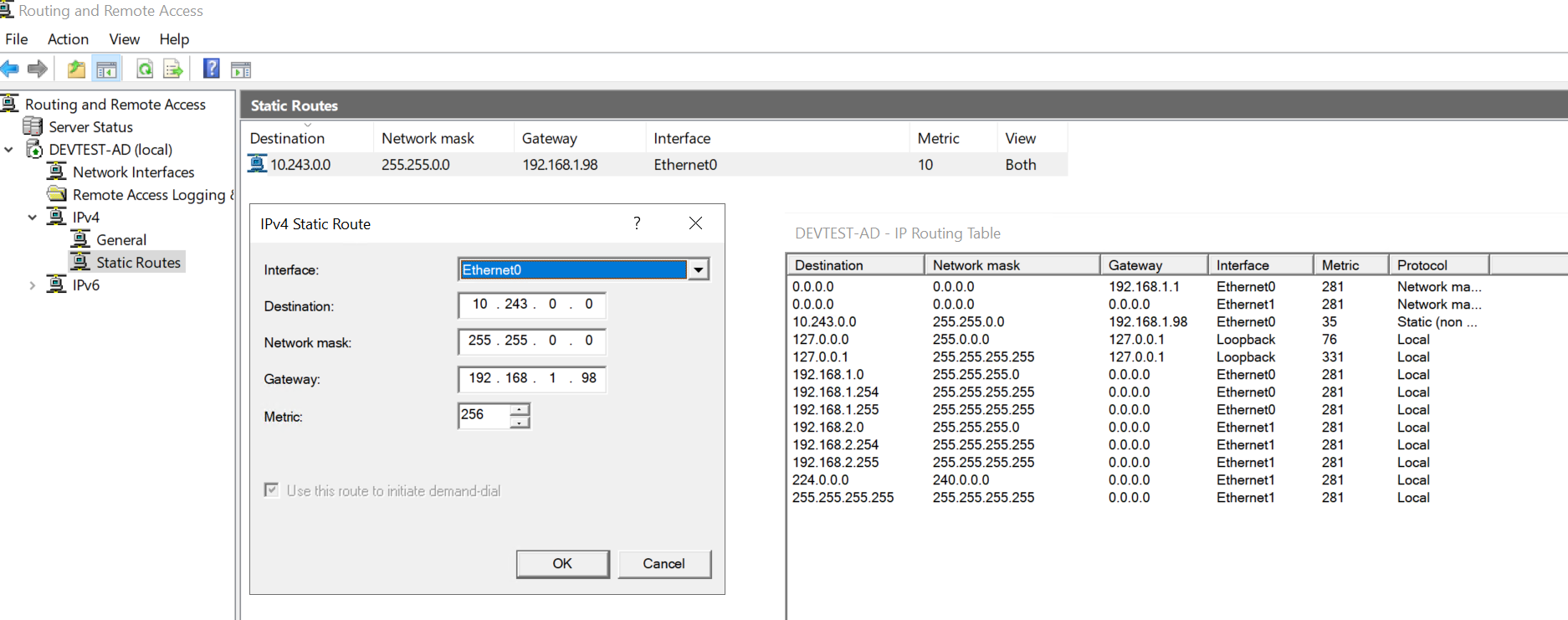

Via GUI

Check the Available Network Interfaces:

To find out the name of the network interface you want to route traffic through, run the following command:

netsh interface show interface

Identify the name of the interface you want to use (e.g., Lan1_network_interface). And add route

route add 10.243.0.0 mask 255.255.255.0 192.168.1.98 IF Lan1_network_interface

You may want to use metric so our manual route have higher priority

Jump route traffic over Private Lan2 Network¶

On the Jump server, we need to enable IP forwarding so that it can forward traffic from the VPN client to the 192.168.2.0/24 subnet:

sudo route add -net 192.168.2.0/24 gw 192.168.1.254

Hop 3: Gateway to Private LAN2¶

Just use default network interface, Lan2 client only know to send the packet back to our gateway (via 192.168.2.254)

Our gateway 192.168.1.254 to 192.168.2.254 have 2 network interface, so there is no need for further config.
